Showing 541–552 of 692 results

Placeholder

Quick View

Physics & Electronic Laboratory Apparatus

MS-58 PVG PERCUSSION APPARATUS

Ultra-thin body, Large Display, Dual channel Compact, versatile oscilloscope for daily use Bandwidth Sample Rate Horizontal Scale (s/div) Channel Display Input Coupling Vertical Resolution (A/D) Vertical Sensitivity Trigger Type Trigger Mode Waveform Math Fuse Dimension (W x H x D) Mass 20MHz 100MS/s 5ns/div - 1000s/div, step by 1 - 2 - 5 2 7" color LCD, 800 x 480 pixels DC, AC , and GND 8 bits (2 channels simultaneously) 5mV/div - 5V/div (at input) Edge, Video Auto, Normal, and Single +, -, x, ÷, invert, FFT2A, T class, 250V 301 x 152 x 70 mm 1.5 kg Packed

Quick View

Physics & Electronic Laboratory Apparatus

MS-580 OSCILLOSCOPE CRO 10MHZ, SINGLE TRACE

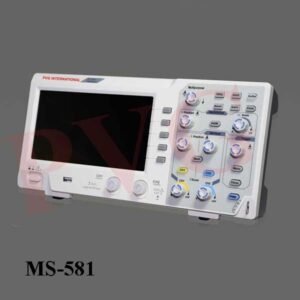

Up to 200MHz Bandwidth, 1GSa/s sampling rate. 500M-1GSa/s sampling rate,5K-2Mpts memory depth. 6 digits hardware frequency counter, real time counting display. Support SCPI programming command control. Interface: USB Device ,USB Host, RS-232, Pass/Fail. Unique digital filter and data recorder function. Embedded 12 languages, online help, 1 key storing and one key printing. APPLICATION Electronic circuit design and debugging. ♦ Electrical circuit function test. Inspect instantaneous signal. Industrial control and measuring. Products quality control. Education and training. TECHNICAL SPECIFICATIONS Vertical Resolution: 8 Bit; Trig Source: CH1,CH2,Ext,Ext/5,AC Line ; Display: 7 inches color TFT-LCD,480*234; Power Supply: AC 100- 240V,45Hz-440Hz,50VA Max ; Max Input Voltage(V): ± 400 V (DC+AC Pk-Pk) CAT iCAT ii Trigger Type: Edge, Pulse, Video, Slope, Alternative ; Interface: USB Host, USB Device, RS-232, Pass/Fail Sampling Rate: 500MSa/s ; Channels: 2CH +1EXT ; Math operation: +,-,*,/,FFT ; Data Recorder Function: yes; Memory depth: 32 Kpts ; Vertical Sensitivity: 2mv-10v/div ; External storage: Bitmap save, CSV save, Waveform save, Setting save ; Digital Filter: High pass, Low pass, Band pass, Band stop ; Internal Storage: 2 groups of reference waveform, 20 groups of setting,20 groups of waveform ; Lasting: Turn off,1s,2s,5s,infinite

Quick View

Physics & Electronic Laboratory Apparatus

MS-581 DIGITAL STORAGE OSCILLOSCOPE 20 MHZ

MS-582 OSCILLOSCOPE CRO 100MHZ, DUAL CHANNEL FOUR TRACE OSCILOSCOPE SALIENT FEATURES 100MHz Dual Channel Four Trace Cathode Ray Oscilloscope with 1:1 and 10:1 Probes TECHNICAL SPECIFICATIONS Confirms to EN61010-1 (1993) and EN-IEC61326-1(1997) With function of B delay sweep High sensitivity: 1mV/DIV In ALT (A and B alternately sweeps) mode, four traces are displayed Fast sweep rate to 5ns/DIV by magnifying 10 Function of B TRIG'D can decrease the delay shrinking Hold-off function makes it easier to catch the complex triggering signals Vertical deflection sensitivity: 5mV/Div to 5V/Div in 1-2- 5 sequence in 10 steps Accuracy: ±5% Rise Time: 3.5nS Maximum Input Voltage : 400V (DC + AC peak) Operating Systems : CH1, CH2, ADD, DUAL (CHOP, ALT) Trigger mode : AUTO, NORM, TV-V, TV-H Trigger signal source : INT, CH2, LINE, EXT External trigger input : About 1m.Ohms 25pF impedance Z-axis maximum input : 30V (DC+AC peak) voltage Bandwidth : DC to 2MHz Sweep Mode : A,B, B Triggered, X-Y, ALT Sweep time : A: 0.05uS to 0.2S/Div ±5% in 21 calibrated steps (1-2-5 seq) B: 0.05uS to 10uS/Div ±5% in 8 calibrated steps (1-2-5 seq) Delay system : Continuous delay or triggered delay Hold-off : Continuous change for 2 times X-Y Operation mode : CH1 X-axis and CH2 Y-axis Calibration Signal : 0.5V Square wave of 1

Quick View

Physics & Electronic Laboratory Apparatus

MS-582 DIGITAL STORAGE OSCILLOSCOPE 50 MHZ

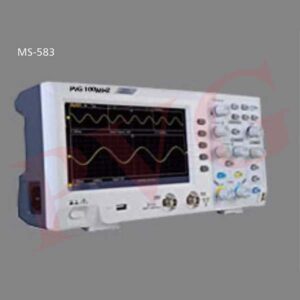

Used in Science, Pharmacy, Engineering & Telecommunication industries. • Easy to operate. • With high vertical resolution which is continuous and unlimited. • Fast in data update captures thousands of waveforms per minute. • Provides visible waveforms, easy for test within the regulated bandwidth. TECHNICAL SPECIFICATION CRT Screen 6" with internal graticule: 8×10 divisions (1 division=1cm.) Accelerating Voltage +1.9kv Phosphor P31 standard Trace Rotation Adjustable Intensity Control Provided Bandwidth DC Coupling DC to 30MHz (Normal) DC to 7MHz (Magnified) AD Coupling 10Hz to 30MHz (Normal) 10Hz to 7MHz (Magnified) Deflection Factor 5mV/div to 5V/div in 10 steps of 1-2-5 sequence (X5 Magnified: 1mV/div to 1V/div in 10 steps) Display Mode CH1, CH2, ADD, ALT, CHOP Accuracy Normal: ±3%, Magnified: ±5% Input Impedance 1MΩ, 25pF Max. Input Voltage 250V (DC+AC peak) CH1 Output 20mV/div (in 50Ω, 20Hz to 10MHz) Rise Time ≤ 11.5ns Polarity Inversion CH2 Only Horizontal Deflection : 0.2μs/div to 0.2s/div in 9 steps of 1-2-5 sequence. Sweep Magnification X10 Accuracy Normal: ±3%, Magnified: ±5% X-Y Mode, X-Axis ` CH1 (Bandwidth: DC-500kHz) Y-Axis Ch2; X-Y Phase Difference 3° or less (DC-50kHz) Trigger System Mode NORM, AUTO, TV-V, TV-H Trigger source CH1,CH2,VERT, LINE, EXT Sensitivity & Frequency 0.5 div (0.5Vp-p EXT), 10Hz-30MHz 1.0 div or 1Vp-p, TV Calibrator Frequency 1kHz ±20% Voltage 0 . 5 V ± 1 0 % ; P o w e r 220V/110V ±10%, 50Hz-60Hz ; Fuse 0.5A/1A Dimensions 310(W) × 130(H) × 370(D) mm ; Mass 9kg

Quick View

Physics & Electronic Laboratory Apparatus

MS-583 OSCILLOSCOPE 100 MHZ DSO

MS-584 FUNCTION GENERATORS 0.2 HZ TO 2 MHZ A function generator is usually a piece of electronic test equipment or software used to generate different types of electrical waveforms over a wide range of frequencies. Some of the most common waveforms produced by the function generator are the sine, square, triangular and sawtooth shapes. TECHNICAL SPECIFICATION 1. 5 digit LED display ( including 3 digits for voltage); Frequency and amplitude display simultaneously; Output waveforms: sine wave; square wave and triangle wave; Frequency of output signal: 0.2Hz ~ 2MHz. Duty cycle adjustable: 20% ~ 80% Width of output signal adjustable continuously; Amplitude without attenuation: 0.9V ~ 10V; Amplitude with -20dB attenuation; 100mV ~ 1V, Amplitude with - 40dB attenuation: 10mV ~100mV; Standard Accessories : Power Cord, Manual; Power : AC 220V-240 V,50 Hz. Dimension Approx :270(H) x 215(W) x 100(D)mm.;

Quick View

Physics & Electronic Laboratory Apparatus

MS-584 PVG FUNCTION GENERATORS 0.2 HZ TO 2 MHZ

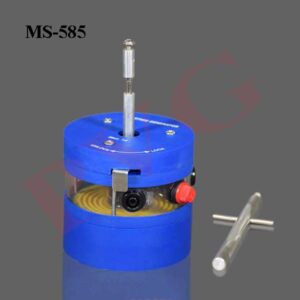

To produce mechanical vibrations when used with a signal generator. The input is fed to a coil, which is mounted within the field of a cylindrical permanent magnet. Mounted on a strong base and is enclosed in a plastic case. The coil and magnet assembly are protected. A threaded extension of the armature allows attachment of the item to be vibrated, e.g., plates for chladni's figure experiments. coil system enables the unit to be operated at its maximum rating for a prolonged period without any damage due to overheating. Electrical input via a pair of 4mm shielded sockets and oscillating mechanical output is available through a shaft at the top. A locking arrangement provides safety to the apparatus during storage or transportation by blocking the motion of shaft. The unit is electrically secured by means of a fuse.

Quick View

Physics & Electronic Laboratory Apparatus

MS-585 PVG VIBRATION GENERATOR

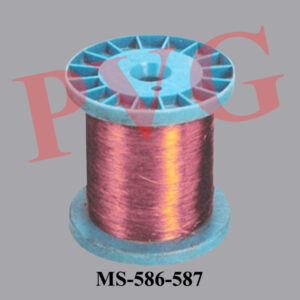

Size 12 s.w.g to 36 s.w.g, in reels of 125 gm., 250 or 500 gms.

Quick View

Physics & Electronic Laboratory Apparatus

MS-586 PVG COPPER WIRE BARE

Size 12 s.w.g to 36 s.w.g, in reels of 125 gm., 250 or 500 gms.

Quick View

Physics & Electronic Laboratory Apparatus

MS-587 PVG COPPER WIRE ENAMELLED

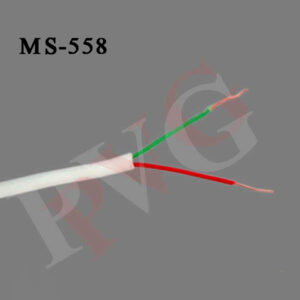

COPPER WIRE PVC COVERED

Quick View

Physics & Electronic Laboratory Apparatus

MS-588 PVG COPPER WIRE PVC COVERED

Placeholder

Quick View

Physics & Electronic Laboratory Apparatus

MS-589 PVG IRON WIRE

Placeholder

Quick View

Physics & Electronic Laboratory Apparatus

MS-59 PVG ROPE BRAKE APPARATUS
