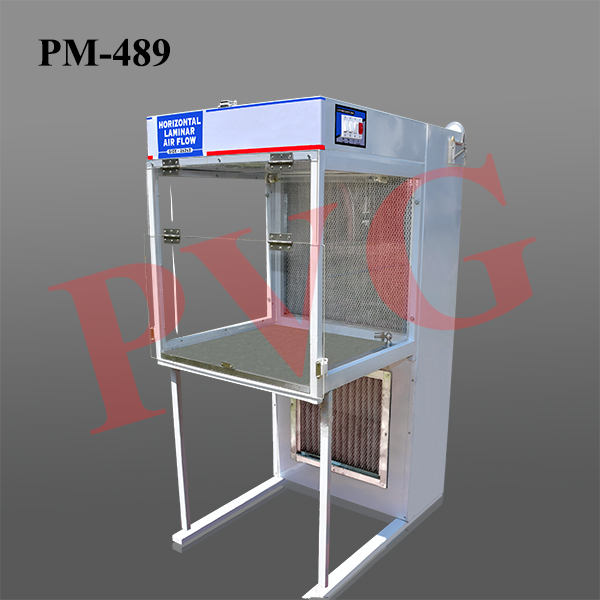

PM-489 LAMINAR AIR FLOW STAINLESS STEEL/WOODEN
Technical Specifiations.
Efficiency : 99.97% (or above) down to 0.3 micron.
Blower unit : Center-balanced, centrifugal motorized blower
with motor, 1/3 h.p.1440 rpm
Filter : with standard H.E.P.A (manipulated & UPLA filter
optional)
Discharge : Air volume 90 cfm + 10%
Noise level : Below 65 db
Illumination : By fluorescent tube, light intensity -the intensity
of the light at the work surface is in between
800 to 1000 lux.
Germicidal : by ultra- violet tube. (approx 50 microwatts per
sp. cm on the entire work surface.)
Electrical : All electrical fittings i.e internal wirings are
protected with heat resistant material. Mains
are through M.C.B for higher protection against
shock.
Manometer : Available are of two types-
(i) Block type acrylic / plexi – glass inclined static
pressure manometer.
(ii) Dial type Magnehelic Manometer (Optional)
Utility lines : Gas (standard), Vacuum and Air (Optional).
UnitSuppliedcompletewiththefollowing:H. E. P. A. Fitter, Pre
Filter, Centri- balanced Centrifugal Air Succession blower Unit
Fluorescent Tube Light, Ultra violet Tube, Static Pressure
Manometer (Acrylic), stainless steel Table Top, Plexi- glass Fixed Side
Panels and Door. Safety grills For H. E. P. A and Pre Filters.
STAINLESS STEEL CHAMBERS
The frame – work fabricated out of rectangular/ square mild steel/
stainless steel hollow tubes .The structure of thick Stainless steel
sheets.
ELECTRO – GALVANIZED STEEL CHAMBERS
The frame – work of rectangular/ square mild steel hollow tubes .
Thick electro galvanized steel sheets with epoxy powder coated.
WOODEN CHAMBERS
Fabricated out of reinforced pest and weather resistant board, Clad
in white mica laminates. inside and outside.
Standard Size Available For Horizontal Models
Dimension of Work Chamber in stainless steel or E. G. (P. C.) Or Wooden
(I) 2’ x 2’ x 2’ (ii) 3’ x 2’ x 2’ (iii) 4’ x 2’ x 2’ (iv) 6 ’x 2’x 2’
Standard Size Available For Vertical Models
Dimension of Work Chamber inS. S. or E. G. (P. C.) or Wooden
(I) 2’ x 2’ x 2’ (ii) 3’ x 2’ x 2’ (iii) 6 ’x 2’ x 2’
Any Other size can be designed as per customer specification.
Note : All the Optional Accessories and Test Facilities at extra cost.
